05 Pac-Man

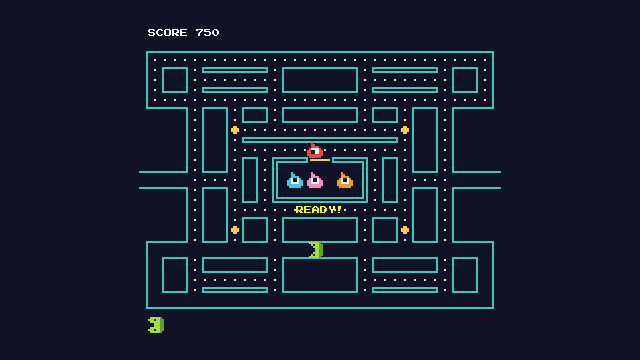

The finished maze chase game

Today’s Goal

Make a maze chase game, like Pac-Man: eat every dot in the maze while four ghosts hunt you. After a power pellet, the ghosts run from you for a few seconds.

The maze of the arcade Pac-Man — The original: *Pac-Man* (Namco, 1980). Image: Bandai Namco Entertainment America, CC BY 3.0, via Wikimedia Commons.

The ghosts are what make Pac-Man interesting to build. Each ghost switches between modes (waiting in the house, scattering, chasing, frightened, eaten), and each mode changes how it moves and what happens when it touches Pac-Man. We write each mode as its own class, with the State pattern.

Each ghost also chases Pac-Man in its own way, and for that we use the Strategy pattern. The two patterns have the same shape, so we look at why they are still used differently. Strategy comes back a second time, for how a ghost finds its way to the target. Each ghost’s targeting gets its own unit tests.

Source code: gar-games/05-pac-man

Prepare

State (up to and including “The State Pattern”)
Strategy
Optional: The Pac-Man Dossier, chapter 3 (“Maze Logic 101”) and 4 (“Meet the Ghosts”): how the original ghosts really work
Optional: Introduction to A* (Red Blob Games): how the search behind the Pacman4 step works

The Maze

Step Pacman0

The maze is a text file, like Sokoban’s levels:

####################################
#..................................#
#.###.#######.########.#######.###.#
#.###.........########.........###.#

# is a wall, . a dot and o a power pellet. - is the door of the ghost house and H its inside; P marks where Pac-Man starts, and b, p, i and c the four ghosts. A row that is open at both ends is a tunnel, and leaving on one side enters on the other.

As in Sokoban, the rules are separate from the drawing. Maze, PacMan and World hold the game; MazeView and PacManView draw it. The walls aren’t even images. MazeView draws a line along every side of a wall tile that faces an open tile.

Moving through the maze

Pac-Man doesn’t move freely like Pong’s ball. He moves from the centre of one tile to the centre of the next, and only at a tile centre can he turn. The ghosts move the same way, so this lives in a shared base class, Actor:

public void Move(float distance)
{
    while (true)
    {
        Vector2 goal = Maze.Center(_target);
        float left = Vector2.Distance(Position, goal);
        if (left > distance)
        {
            Position += (goal - Position) / left * distance;
            return;
        }

        // Arrived at a tile centre: wrap through the tunnel, and choose the next direction.
        distance -= left;
        _target = maze.Wrap(_target);
        Position = Maze.Center(_target);
        Heading = ChooseDirection(_target);
        if (Heading == Direction.None)
            return;
        _target += Heading;
    }
}

protected abstract Point ChooseDirection(Point tile);

Pac-Man and the ghosts only differ in how they choose. Pac-Man turns where the player asked, if he can:

protected override Point ChooseDirection(Point tile)
{
    if (Wanted != Direction.None && !Maze.BlocksPacMan(tile + Wanted))
        return Wanted;
    if (!Maze.BlocksPacMan(tile + Heading))
        return Heading;
    return Direction.None;
}

Wanted is kept until Pac-Man can turn that way. Press up a little before a corner, and he turns up when he gets there. That’s input buffering, as in Snake, but here it’s what makes the controls feel good.

Try it (Pacman0): open a new tunnel in maze.txt, or move Pac-Man’s start. Then press a direction just before a corner, and watch when he turns.

Ghosts, With an Enum

Step Pacman1

Each ghost is always in one of five modes:

Mode	What the ghost does	Touching Pac-Man
In the house	Waits, then leaves through the door	—
Scatter	Heads for its own corner of the maze	Pac-Man is caught
Chase	Hunts Pac-Man	Pac-Man is caught
Frightened	Turns blue, slows down and wanders at random	The ghost is eaten
Eaten	Only the eyes, racing back to the house	—

stateDiagram-v2
    [*] --> InHouse
    InHouse --> Scatter : left the house
    Scatter --> Chase : schedule
    Chase --> Scatter : schedule
    Scatter --> Frightened : power pellet
    Chase --> Frightened : power pellet
    Frightened --> Scatter : time's up
    Frightened --> Chase : time's up
    Frightened --> Eaten : touched Pac-Man
    Eaten --> InHouse : back in the house

Scatter and chase take turns on a fixed schedule (ModeSchedule): 7 seconds of scatter, 20 of chase, and so on. This is why the ghosts sometimes seem to give up the hunt. Without the scatter phases, the game would be too hard.

Scatter and chase take turns on a fixed schedule, and frightened pauses it.

However a ghost moves, it decides at each tile centre the same way. It never turns back, and of the directions left, it takes the one whose next tile is closest to a target tile (in a straight line). The mode decides the target. It is the ghost’s corner in scatter, Pac-Man in chase, and the house when eaten. Frightened ghosts have no target, and pick at random.

At a tile centre a ghost takes the open direction whose next tile is closest to its target.

The simplest way to build the modes is an enum, and that’s what Pacman1 does:

public enum GhostMode { InHouse, Scatter, Chase, Frightened, Eaten }

public void Update(float deltaSeconds)
{
    switch (Mode)
    {
        case GhostMode.InHouse:
            _houseTimer += deltaSeconds;
            if (_houseTimer < _releaseDelay)
                return;
            Move(HouseSpeed * deltaSeconds);
            if (!Maze.IsInHouse(Tile))
                SetMode(ScheduledMode());
            break;
        case GhostMode.Scatter:
        case GhostMode.Chase:
            Move(Speed * deltaSeconds);
            break;
        case GhostMode.Frightened:
            // ...
    }
}

It works, but the class as a whole has problems:

Every method switches over the mode: Update, ChooseDirection, OnPowerPellet, Touch, Look, and SetMode for what happens when a mode starts. To understand frightened ghosts, you read a piece of seven methods.
Fields that belong to one mode: _houseTimer only matters in the house, _frightenedTimer only when frightened, _enteringHouse only when eaten. They’re all there all the time, and nothing stops a mode from using another mode’s field.
A new mode touches everything: add a mode where ghosts are frozen for a moment, and every switch needs a new case. Miss one, and the compiler won’t tell you.

This is the same problem as Pong’s string-based game state, and it gets worse with every mode.

Try it (Pacman1): add Frozen to GhostMode, for a ghost that stands still for a second after being eaten. Don’t finish it, just count the switches you would have to change.

The State Pattern

Step Pacman2

Allow an object to alter its behavior when its internal state changes. The object will appear to change its class. (Design Patterns, Gamma et al.)

In Flappy Bird we made each state of the game an object. The State pattern does the same for an object in the game. Each of a ghost’s modes becomes a class, and the ghost forwards everything that depends on the mode to its current state.

classDiagram
    class Ghost {
        +GhostState State
        +ChangeState(state)
        +Update(deltaSeconds)
        +OnPowerPellet()
        +Touch() TouchResult
    }
    class GhostState {
        <<abstract>>
        +Enter(ghost)
        +Exit(ghost)
        +Update(ghost, deltaSeconds)*
        +ChooseDirection(ghost, options)* Point
        +OnPhaseChanged(ghost)
        +OnPowerPellet(ghost)
        +OnTouch(ghost) TouchResult
    }
    Ghost --> GhostState : current
    GhostState <|-- InHouseState
    GhostState <|-- ScatterState
    GhostState <|-- ChaseState
    GhostState <|-- FrightenedState
    GhostState <|-- EatenState

public void ChangeState(GhostState state)
{
    State?.Exit(this);
    State = state;
    State.Enter(this);
}

public void Update(float deltaSeconds) => State.Update(this, deltaSeconds);
public void OnPowerPellet() => State.OnPowerPellet(this);
public TouchResult Touch() => State.OnTouch(this);

Everything about being frightened now lives in one class, including its own timer:

public class FrightenedState : GhostState
{
    public const float Seconds = 6;
    private float _elapsed;

    // Every ghost turns around when it becomes frightened: a sign for the player.
    public override void Enter(Ghost ghost) => ghost.Reverse();

    public override void Update(Ghost ghost, float deltaSeconds)
    {
        _elapsed += deltaSeconds;
        ghost.Move(Speed * deltaSeconds);
        if (_elapsed >= Seconds)
            ghost.ChangeState(ghost.ScheduledState());
    }

    public override Point ChooseDirection(Ghost ghost, IReadOnlyList<Point> options)
        => options[ghost.World.Random.Next(options.Count)];

    public override TouchResult OnTouch(Ghost ghost)
    {
        ghost.ChangeState(new EatenState());
        return TouchResult.GhostEaten;
    }
}

Things to notice:

The states decide the transitions. FrightenedState knows it ends after six seconds, and that being touched makes the ghost EatenState. Ghost doesn’t know which states exist.
The same event, handled differently. World tells every ghost about a power pellet, and doesn’t care what each one does with it. Scatter and chase become frightened; a frightened ghost starts its time over; eaten ghosts and ghosts in the house ignore it (the base class does nothing by default).
Enter and Exit give each state a place to start and clean up. Turning around when frightened is part of becoming frightened, so it’s in Enter.
Each state is small. The five state classes are together about as long as the enum version of Ghost, but each one can be read on its own.

Compare the diff between Pacman1 and Pacman2: World didn’t change at all. Only the inside of Ghost did.

Try it (Pacman2): make frightened ghosts last 3 seconds instead of 6. How many files did it take? Where would a FrozenState go?

The Strategy Pattern

Step Pacman3

Until now, all four ghosts chase the same way, straight at Pac-Man. They end up in a line behind him, which is easy to escape. In the original game, each ghost has its own personality, and that’s all in how it picks its target while chasing:

Ghost	Strategy	Target while chasing
Blinky (red)	`ChasePacMan`	Pac-Man’s tile
Pinky (pink)	`AmbushAhead`	Four tiles ahead of Pac-Man
Inky (cyan)	`FlankWithBlinky`	Take the tile two ahead of Pac-Man, and double the line from Blinky to it
Clyde (orange)	`ChaseUntilClose`	Pac-Man, until within eight tiles; then his own corner

Together, they trap Pac-Man: Blinky follows him, Pinky cuts him off, and Inky closes in from the other side of Blinky.

Each ghost aims at a different tile while chasing.

Define a family of algorithms, encapsulate each one, and make them interchangeable. (Design Patterns, Gamma et al.)

public interface ITargetStrategy
{
    Point ChooseTarget(Ghost ghost, World world);
}

// Pinky: four tiles ahead of Pac-Man, to cut him off.
public class AmbushAhead : ITargetStrategy
{
    public const int TilesAhead = 4;

    public Point ChooseTarget(Ghost ghost, World world)
    {
        Point facing = world.PacMan.Facing;
        return world.PacMan.Tile + new Point(facing.X * TilesAhead, facing.Y * TilesAhead);
    }
}

Each ghost gets its strategy when World creates it, and ChaseState asks the ghost’s strategy for the target:

Pinky = new Ghost(this, "pinky", Maze.StartOf('p'), new Point(2, -3), 0, new AmbushAhead());

public override Point ChooseDirection(Ghost ghost, IReadOnlyList<Point> options)
    => ghost.Closest(ghost.Targeting.ChooseTarget(ghost, ghost.World), options);

ChaseState works for every ghost, and doesn’t know which strategies exist. A fifth ghost with a new personality is one new class and one line in World. You’ll meet the pattern again in Super Mario Bros, where interchangeable level makers build different kinds of levels.

Try it (Pacman3): give Clyde Blinky’s strategy in World, and play. How does the chase change?

State vs. Strategy

Draw the class diagrams of the two patterns, and they look the same. An object holds a reference to an interface, and forwards work to it. The difference is in why and when the object behind the interface changes.

	State	Strategy
In Pac-Man	The ghost’s mode	The ghost’s targeting
Who picks it	The states themselves, as the game goes on	Whoever creates the ghost (`World`)
How often it changes	All the time	Never, once chosen
Knows the others?	Yes: a state creates the next state	No: strategies don’t know each other
The question it answers	“What am I doing right now?”	“How do I do this?”

The two work together here. The state decides whether the ghost is chasing, and the strategy decides how it chases.

A Second Strategy: Routing

Step Pacman4

The ghosts decide one tile at a time. At a tile centre, a ghost takes the open direction whose next tile is closest to the target in a straight line. That rule is cheap, and it’s what the arcade game does, but it knows nothing about walls. Here the ghost G wants to reach T, two rows up:

The arcade rule takes the turn that looks closest; the shortest path takes the turn that is.

The tile to the left is closer to T, so the ghost goes left. That way is seven steps long. Going right is five.

Finding the way is a second thing that could be done in more than one way, so it gets the same treatment as targeting. ITargetStrategy says where a ghost wants to go, and IRouteStrategy says which way it turns to get there:

public interface IRouteStrategy
{
    Point ChooseDirection(Ghost ghost, Point target, IReadOnlyList<Point> options);
}

Strategy	How it chooses
`NearestTile`	The arcade rule. The open tile closest to the target, in a straight line
`ShortestPath`	The first step of the shortest path through the maze

ShortestPath asks Pathfinder.FindPath for the path. It searches the maze with A* (say “A star”), the usual algorithm for finding a way on a grid. How the search works is in Pathfinder.cs and in the optional reading. For the ghost, it is one method that takes a start and a target and gives back the tiles between them.

All four ghosts keep NearestTile while they scatter and chase. Their wrong turns are part of the game, and they give the player room to escape. The eaten ghost is different. Its eyes should get home as fast as they can, so EatenState always uses ShortestPath:

private readonly ShortestPath _route = new();

public override Point ChooseDirection(Ghost ghost, IReadOnlyList<Point> options)
    => _route.ChooseDirection(ghost, ghost.Maze.HouseCenter, options);

Before this step, the state needed a flag, _enteringHouse. The eyes first aimed for the tile outside the door and then for the middle of the house, because the straight-line rule couldn’t find the door from every side. The search finds the door as part of the path, and the flag is gone.

Try it (Pacman4): give Blinky new ShortestPath() in World, and play. Then give it to all four. What happens to the game?

Testing the Ghosts

Project Pacman.Tests

A targeting strategy is a small class with one method. To test it, put Pac-Man somewhere and check which tile the ghost aims for. Each strategy can be tested on its own, as in Sokoban:

[Fact]
public void Inky_doubles_the_line_from_Blinky_to_two_tiles_ahead_of_Pac_Man()
{
    _world.PacMan.Place(new Point(5, 1), Direction.Right);
    _world.Blinky.Place(new Point(3, 3), Direction.Left);

    // Two tiles ahead of Pac-Man is (7, 1). From Blinky that's (+4, -2), doubled: (11, -1).
    Assert.Equal(new Point(11, -1), TargetOf(_world.Inky));
}

Inky’s rule is the hardest to get right by playing, because you can’t see his target. The test checks it with numbers you can work out on paper.

The states are tested the same way. Put a ghost in a state, make something happen, and check the state it ends up in (GhostStateTests). The tests use a small maze of their own (TestMaze) and a seeded Random, so frightened ghosts wander the same way every run.

PathfinderTests puts the two routing strategies on the same tile with the same target, and checks that they turn different ways:

// Left looks closer in a straight line, but the way up is to the right.
Assert.Equal(Direction.Left, new NearestTile().ChooseDirection(blinky, target, options));
Assert.Equal(Direction.Right, new ShortestPath().ChooseDirection(blinky, target, options));

Game States

Step Pacman5

Pacman5 adds three lives, Pac-Man’s death, and a new level when the dots are gone. The flow of the game uses the State pattern too, as a state machine like Flappy Bird’s:

stateDiagram-v2
    [*] --> Ready
    Ready --> Play : after 2 seconds
    Play --> Dying : caught
    Play --> Ready : maze cleared
    Dying --> Ready : lives left
    Dying --> GameOver : no lives left
    GameOver --> Ready : Enter

There are now two levels of state machine in one game, the game’s states (title, ready, play, dying, game over) and each ghost’s states. The ghosts only get updated in PlayState, so while Pac-Man is dying, the ghosts’ states are paused.

The Whole Game

Step Pacman5

Pacman5 is the finished game. Game1 loads everything and hands the game over to its states.

classDiagram
    Core <|-- Game1
    Game1 --> StateMachine : game states
    Game1 --> World
    Game1 --> MazeView
    Game1 --> PacManView
    Game1 --> GhostView
    World --> Maze
    World --> PacMan
    World --> Ghost : four
    World --> ModeSchedule
    Actor <|-- PacMan
    Actor <|-- Ghost
    Ghost --> GhostState : current
    Ghost --> ITargetStrategy
    Ghost --> IRouteStrategy

World and everything it holds are the rules, and the three views draw them. A ghost holds one state at a time, and its two strategies for as long as it lives.

Summary

Concern	Answer
What a ghost is doing now	State, with a class for each mode
How each ghost hunts	Strategy (`ITargetStrategy`)
How a ghost finds its way	A second strategy (`IRouteStrategy`)
Who picks the object behind the interface	The states pick the next state. `World` picks each strategy once
Checking a ghost’s rule	A unit test for each strategy and state
The flow of the whole game	A state machine, one level above the ghosts

Exercises

Start from Pacman5.

A new mode: when Pac-Man eats a ghost, the game freezes for half a second in the original, and shows the points. Here it is enough that the eaten ghost stands still for half a second before its eyes head home. Build the frozen mode you counted the switches for, as a FrozenState that comes before EatenState. Which classes did you change, compared with the seven places in Pacman1’s enum? One test in GhostStateTests.cs now fails. Is the test wrong, or the code?
A new personality: add a fifth ghost with its own ITargetStrategy, e.g. one that aims at the tile opposite Pac-Man, mirrored through the middle of the maze. Write a test for it first, next to the others in TargetingTests.cs. The ghost needs a start: a letter of its own in maze.txt, in the test maze and in Maze.Parse. Its two frames are already in sprites.png (row 1, at x = 256 and 288); add the regions and an animation in atlas-definition.xml.
Frightened in the house: in the original, ghosts waiting in the house also turn blue after a power pellet (but stay in the house). Change InHouseState to do that. What does the state need to remember?
Fruit: after 70 dots, a fruit appears below the house for ten seconds, and is worth points if Pac-Man reaches it in time. Where does that rule belong: in World, in Maze, or in a class of its own? A cherry is in sprites.png (row 0, at x = 96), ready for a region.
Tunnel (stretch): in the original, ghosts slow down in the tunnel. Which class should know that the ghost is in the tunnel, and which should know how fast to go there?

Apply It to Your Project

Which objects in your game have modes? Are they flags, an enum, or state objects?
Where do you have a switch (or an if chain) over a mode in more than one method?
Is there a behaviour that differs per object, but never changes for one object? That’s a strategy.

Check Yourself

What problems does the enum version of the ghost have?

Every method switches over the mode, so one mode’s behaviour is spread over many methods. Fields that belong to one mode exist in all of them, and adding a mode means finding and changing every switch.

In the State pattern, who decides when to change state?

Usually the states themselves. A state knows which events end it, and which state comes next. The object that holds the state only forwards to it, and doesn’t need to know which states exist.

What are Enter and Exit for?

Setting up and cleaning up a state, in one place, whichever state came before or comes after. Here, FrightenedState.Enter turns the ghost around.

State and Strategy have the same structure. How do they differ?

A state changes during the object’s life, often chosen by the states themselves. A strategy is chosen from outside, usually once, and strategies don’t know about each other.

Why do the chasing ghosts keep the arcade rule, when the shortest path is better?

Better pathfinding would make the game harder without making it more fun. The ghosts’ wrong turns give the player room to escape, and with the shortest path all four would end up in the same corridors. Because routing is a strategy, the choice is one argument in World.
