07 The Legend of Zelda

Today’s Goal

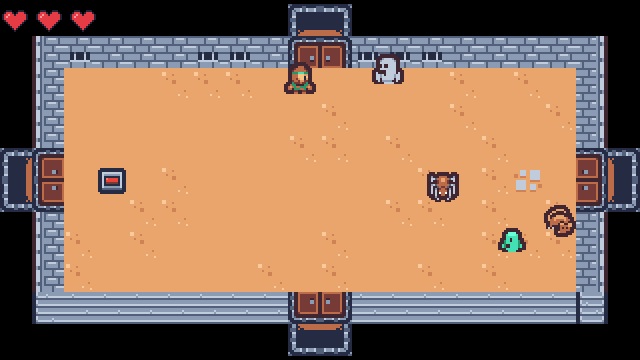

Make a dungeon adventure game, like The Legend of Zelda: fight through rooms of monsters with a sword, and open the doors to the next room.

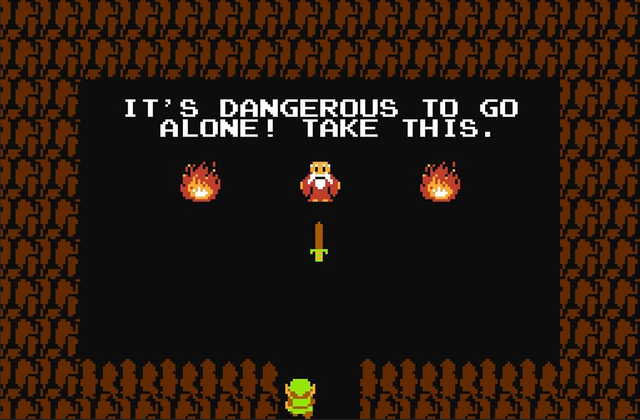

The original: The Legend of Zelda (Nintendo, 1986). Screenshot © Nintendo.

We build the basics of a dungeon adventure game. In a game like this, things happen all the time. The player dies, a switch is pressed, a room is left. Other parts of the game have to react, and the part where it happened shouldn’t need to know who they are. That is what events are for. We use the Observer pattern, which C# has built in as events.

The session also covers hitboxes and hurtboxes, and a tweening system for scrolling between rooms. It ends with composition vs. inheritance. The game has many kinds of things, and how we build them decides how easy the next one is to add.

Source code: gar-games/07-the-legend-of-zelda

Prepare

• Observer
• Event Queue (skim)
• C# Delegates
• Optional: C# Action Delegate, the reference

Explore the Codebase

Take about 15 minutes to browse the finished game, Zelda7, using the README as a guide:

• Find where the game transitions between the title screen, gameplay and game over.
• How does the player move?
• Find where a new room is generated, and what it contains when created.
• The player and enemies share a lot of code. Find the common base and explain what it provides.
• Trace what happens from the moment the player presses Space to an enemy taking damage.

Top-Down Perspective & Dungeon Generation

Steps Zelda0 → Zelda2

The dungeon is an endless series of rooms. Each room is a tilemap generated when entered: solid walls and corners around the edge, and a floor of random floor tiles (Zelda0). Then come the player (Zelda1), enemies (Zelda2), and doorways and objects such as the switch that opens the doors (Zelda4).

In a top-down game, the player’s sprite is taller than the part that collides. The sprite is drawn a few pixels above its collision box, so the character looks like it stands on the floor.

The rooms’ tiles and the XML files refer to tiles by their number in the sprite sheet (frames="9,10,11,10"). The repo’s LabelTiles tool writes each tile’s number onto a copy of a sheet, so you can look them up.

Hitboxes & Hurtboxes

Step Zelda3

• Hitbox: the area that deals damage (e.g. the sword swing).
• Hurtbox: the area that receives damage (e.g. the enemy’s body).

Keeping them separate means the sword’s reach and the enemy’s body don’t have to match the sprite. The player’s hurtbox is only the lower half of its sprite, its feet, which suits the top-down look. The sword’s hitbox is a rectangle in front of the player, built when the swing starts. The swing is a state. It checks the hitbox against the enemies every frame, and ends when its one-shot animation has played once. Press F1 to see both during a swing, the hitbox in red and the hurtbox in green, drawn with the DebugDraw from Super Mario Bros.

Where does collision live? There is no central collision system. Each kind of collision is checked where the knowledge it needs already is:

Collision	Checked in	Because
Player and enemy	The room	The consequence (damage, maybe death) needs the room
Player and switch	The room	Opening the doors needs the room’s doorways
Sword and enemy	The sword-swing state	It belongs to the swing and its timing
Entity and wall	The walk state	Stopping at walls is part of moving

No single place lists every collision, which is the price. In return, reading a state or a room method shows everything that interaction does. Compare it with the dedicated collision system in Geometry Wars, which has far more things colliding.

Try it (Zelda7): make the sword reach twice as far in GameSettings, press F1 and play. Does it still feel fair?

Events & the Observer Pattern

Steps Zelda3 → Zelda4

In Zelda3, the play state checks every frame whether the player has died:

if (_player.Health <= 0)
    Game.SetState(new GameOverState(Game));

In Zelda4, the room announces it instead, and the play state reacts:

_room.OnPlayerDied += OnPlayerDied;

Once there is a dungeon of rooms (Zelda5), the event is passed up one layer at a time: the room announces it, the dungeon forwards it, and the play state reacts. The room knows nothing about the dungeon, and the dungeon nothing about the play state; each class only knows the one below it.

Dungeon.cs

room.OnPlayerDied += () => OnPlayerDied?.Invoke();

Games are full of moments where something happens and other things need to react. The thing that happened shouldn’t need to know what those other things are.

Observer flips the dependency around. The subject (publisher) just announces that something happened, and any number of observers (subscribers) react.

classDiagram
    class Room {
        +event OnPlayerDied
    }
    class Dungeon {
        +event OnPlayerDied
    }
    class PlayState
    class GameObject {
        +event OnCollide
    }
    Room <.. Dungeon : subscribes
    Dungeon <.. PlayState : subscribes
    GameObject <.. Room : subscribes

In C#, we don’t need to implement the pattern ourselves. Delegates and events are built into the language.

Delegates

A delegate is a variable that holds a reference to a method.

Action       // no arguments, returns void
Action<T>    // takes a T, returns void
Func<T>      // no arguments, returns T

obj.OnCollide = () => Console.WriteLine("hit");  // assign one handler
obj.OnCollide += () => PlaySound("hit");         // add more handlers
obj.OnCollide?.Invoke();                         // call all of them

Events

An event is a delegate with guardrails, and outside code can only += and -=. Only the owning class can invoke it or replace its subscribers.

GameObject.cs

public event Action OnCollide;

public void Collide() => OnCollide?.Invoke();

?.Invoke() calls every subscriber, and does nothing when there are none. The floor switch is a GameObject. It announces that something stepped on it, and has no idea what a switch is for.

Lambdas and closures

A lambda is an inline, anonymous function: (int n) => n % 2 == 0. When a lambda uses variables from its surrounding scope, it captures them (a closure). The room gives the switch its meaning with one:

Room.cs

switchObj.OnCollide += () =>
{
    if (switchObj.State == "unpressed")
    {
        switchObj.State = "pressed";
        foreach (var d in Doorways)
            d.IsOpen = true;
        SoundManager.PlaySound("door");
    }
};

The lambda uses switchObj and the room’s Doorways, long after the method that created it has returned.

Try it (Zelda7): in PlayState, add a second subscriber to _dungeon.OnPlayerDied that plays a sound: _dungeon.OnPlayerDied += () => SoundManager.PlaySound("hit-player");. Which classes did you change, and which didn’t need to know?

Pitfalls

• Forgotten unsubscribes: a subscriber stays alive (and keeps reacting) as long as the publisher holds a reference to it. Unsubscribe in Exit()/Dispose(). You can’t -= a lambda unless you stored it in a variable.
• Hidden control flow: “who reacts to this?” is no longer visible at the call site.
• Ordering: don’t rely on the order in which subscribers are called.
• Re-entrancy: a handler that changes state (e.g. removes entities from a list) while the publisher is still iterating over it.

Event Queue

Events are handled immediately, inside the publisher’s call. An event queue stores them instead, and handles them later, at a safe point, such as once per frame. That decouples the sender from the receiver in time as well, and avoids the re-entrancy pitfall above, since nothing is handled while the publisher is still busy. You’ve built a small one already: Snake queues the player’s turns and handles one per tick.

The classic example is audio. Many parts of the game ask for sounds, and the audio system plays them in one place, once per frame, merging duplicates. That is one of the exercises below. In Angry Birds, you’ll meet a queue that a library keeps for you.

Screen Scrolling & Tweening

Step Zelda5

Tweening (“in-betweening”) animates a value from A to B over time, instead of snapping it. The simplest curve is linear interpolation:

lerp(a, b, t) = a + (b - a) * t        where t goes from 0 to 1

Non-linear curves (ease-in, ease-out, see easings.net) often feel more natural.

When the player walks through a door, the camera and the player move at the same time. The next room is placed one screen away, and the camera travelling towards it creates the scroll. We could keep a progress value, advance it every frame and lerp by hand, but games tween all the time: fades, flashes, menus sliding in, damage numbers floating up. So GARCore gets a small, reusable tween system, a TweenManager:

• Tween: change one or more values from A to B over a set time.
• After: wait N seconds, then run a method.
• Every: repeat a method at a fixed interval (.Limit to stop after N times).
• Chaining: .Add() animates several values at once, and .Finish() runs code when done.

Dungeon.cs

_tweens.Tween(GameSettings.RoomShiftDuration)
    .Add(t => _camera.Position = Vector2.Lerp(Vector2.Zero, _shiftTarget, t), 0f, 1f)
    .Add(t => _player.Position = Vector2.Lerp(playerStart, playerEnd, t), 0f, 1f)
    .Finish(FinishShift);

The dungeon only has to call _tweens.Update(gameTime) while shifting. When the tween ends, FinishShift makes the new room the current room and resets the camera. The dungeon doesn’t keep a progress variable or check whether the scroll is done; the tween system keeps the timing.

Try it (Zelda7): make the room shift take twice as long. Then give it an ease-out. In Dungeon, pass 1 - (1 - t) * (1 - t) to Vector2.Lerp instead of t. How does the scroll feel now?

Stenciling

Step Zelda6

While walking through a door in Zelda5, the player is drawn on top of the door arch. Zelda6 fixes this with the stencil buffer: an extra per-pixel mask, next to the colour of each pixel. The dungeon draws in three passes:

1. The rooms and everything in them, as usual.
2. A rectangle over each door arch, with colour writes switched off. It draws nothing you can see, but writes 1 into the stencil buffer there.
3. The player again, only where the stencil is still 0.

The player seems to walk under the arch. All three passes use the same camera transform, so the mask follows the camera while the rooms scroll.

Data-Driven Design

Steps Zelda1, Zelda2 and Zelda4

Enemies and game objects are defined in XML:

<Enemy type="rat" width="16" height="16" walkSpeed="20" health="1">
  <Animation name="walk-down" frames="9,10,11,10" interval="0.2" />
  <Animation name="idle-down" frames="10" interval="0.2" />
</Enemy>

Adding a new enemy type means one <Enemy> block plus a sprite sheet row, and no new class. The C# code only knows animation names like walk-down, never frame numbers. Objects work the same way. A switch’s states (unpressed, pressed) and their frames come from object_definitions.xml, and each doorway’s tiles from door_layouts.xml. Content lives in data and behaviour in C#. Angry Birds builds its levels from data in the same way, and Plants vs. Zombies a whole game, with the Type Object pattern.

Composition vs. Inheritance

Steps Zelda1 → Zelda4

The player and the enemies share an abstract Entity base class. It provides what every creature needs: a position and a collision box, a sprite offset for the top-down look, animations, health, invulnerability after a hit, and a current state. Player and Enemy inherit it and add their own parts.

classDiagram
    class Entity {
        <<abstract>>
        +Position
        +Bounds
        +Health
        +ChangeState(state)
        +GoInvulnerable(duration)
    }
    Entity <|-- Player
    Entity <|-- Enemy
    Entity --> EntityStateBase : current state
    class GameObject {
        +State
        +event OnCollide
    }

Inheritance works well while there is one axis of variation. It gets harder with an enemy that shoots and flies and explodes, or a pot that the player can carry and throw. Deep hierarchies (Entity → Movable → Enemy → ShootingEnemy → HomingShootingEnemy…) lead to one of two problems:

• Duplicated code: two branches of the tree need the same behaviour, so it is copied.
• A bloated base class: the shared behaviour moves up into Entity, until every entity carries every feature, used or not.

Composition is the alternative. An object is given the behaviours it has. Zelda already composes in three places we have seen:

• Behaviour in state objects: an enemy’s AI lives in the state object it currently holds (EntityWalkState, EntityIdleState). To behave differently, the enemy swaps that object; its class stays the same.
• Behaviour wired from outside: a floor switch is a plain GameObject. The room attaches a handler to its OnCollide event, and that handler decides what happens when the player steps on it. There is no SwitchObject subclass.
• Enemy types as data: enemy types (their size, speed, health and animations) come from a data file, so there is no class per enemy type.

“Favor object composition over class inheritance.” — Gang of Four, Design Patterns

Inheritance isn’t wrong: Entity is a sensible base here. But every time you add a subclass, ask whether you’re describing what something is or what it can do. The second is usually better as a part the object has. In Plants vs. Zombies, we take this all the way with the Component pattern.

The Whole Game

Step Zelda7

Zelda7 adds music and sound effects, and is the finished game. The play state holds the player and the dungeon. The dungeon holds the current room, and the next one while the screen scrolls. A room holds its enemies, objects and doorways.

classDiagram
    Core <|-- Game1
    Game1 --> GameStateBase : current
    GameStateBase <|-- StartState
    GameStateBase <|-- PlayState
    GameStateBase <|-- GameOverState
    PlayState --> Player
    PlayState --> Dungeon
    Dungeon --> Room : current and next
    Dungeon --> Camera
    Room --> Enemy : many
    Room --> GameObject : many
    Room --> Doorway : many
    Entity <|-- Player
    Entity <|-- Enemy
    Entity --> EntityStateBase : current

The arrows point down, from the play state to the room. The events travel the other way, so a room can announce the player’s death without an arrow up to the play state.

Summary

Concern	Answer
Reacting to something that happened elsewhere	Observer, as C# events
Reacting later, at a safe point	An event queue
Dealing and taking damage	A hitbox and a hurtbox
A value that changes over time	A tween
Many kinds of things	Parts an object has, where inheritance would need a class per combination
Enemy and object types	Definitions in XML

Exercises

Start from Zelda7.

1. More event-driven: start with the first, then do one of the other two. The class firing an event must have no reference to the class reacting to it.
   • Trace OnPlayerDied through the code, from where the player’s death is noticed to where the game over screen appears. Which classes does it pass through?
   • Enemy death has no event. Find what happens now when an enemy dies. Then add an event for it, and let something react, such as a sound or a score.
   • SoundManager.PlaySound(...) is called directly from several unrelated classes. Find all the call sites. Why is this a problem, and how would events fix it? Then make it an event queue: PlaySound only records the sound’s name, and once per frame every requested sound plays once, so ten hits in the same frame don’t play ten sounds. Where in the frame do the sounds play, and what do you give up?
2. Composition: sketch the class hierarchy you would need for enemies that can walk, fly, shoot or explode, in any combination. Then sketch the same with composition. Which parts would an enemy have? Implement one of them (e.g. a shooting behaviour that any enemy can be given).
3. Keys and locked doors:
   • Some enemies drop a key when they die. Use an event for it, as above. The key is drawn in hearts.png (its last frame, frame_6).
   • Some doorways are locked. The switch opens the other doors of the room, but a locked one stays shut until the player brings a key. Add locked layouts to door_layouts.xml, so the look stays in data, as a closed door’s four tiles with a padlock on top. The padlock is drawn over four tiles of the tilesheet: 243 (top left), 244 (top right), 245 (bottom left) and 246 (bottom right).
   • Walking into a locked door with a key uses up the key and opens the door. Show the keys the player carries next to the hearts.
4. A dungeon map (stretch): keep track of the rooms the player has visited, and show them as a small map on a key press, with the current room highlighted. Which state shows it, and what does it need to know?

Apply It to Your Project

• What are the meaningful moments in your game that other systems might care about? Map out at least two. What fires the event, and what should react?
• Is there anywhere a class knows too much about another class? Could an event fix that?
• Where does your game use inheritance? For each subclass, is it what something is or what it can do?

Check Yourself

When does inheritance fit, and when is composition better?

Inheritance fits when there is one clear “is a” axis and the shared behaviour is needed by every subclass. Composition fits when behaviours combine freely. Instead of one subclass per combination, an object has the parts it needs, and they can even change at runtime.

Why does Observer suit UI code particularly well?

The UI depends on the game data, but the game shouldn’t depend on the UI. With events, a health bar subscribes to an event on the player, and gameplay code never needs to know a health bar exists. The UI also only updates when something actually changes.

What is the difference between a delegate and an event in C#?

An event is a delegate that outside code can only subscribe to and unsubscribe from. Only the declaring class can invoke it or overwrite its subscriber list.

What is the cost of data-driven design?

Errors move from compile time to runtime, you need loading and validation code, and behaviour is split between code and data files.

What does an event queue change, compared with a plain event?

A plain event is handled at once, inside the publisher’s call. A queue stores it and handles it later, at a safe point such as once per frame. Nothing is handled while the publisher is still busy, and duplicates can be merged.

Related exam questions: 5, 7, 8, 9.
